Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

+
  • RJ14HWP.jpg

RJ14HWP

型号:

E-008


Summary

Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets


Message

Detail

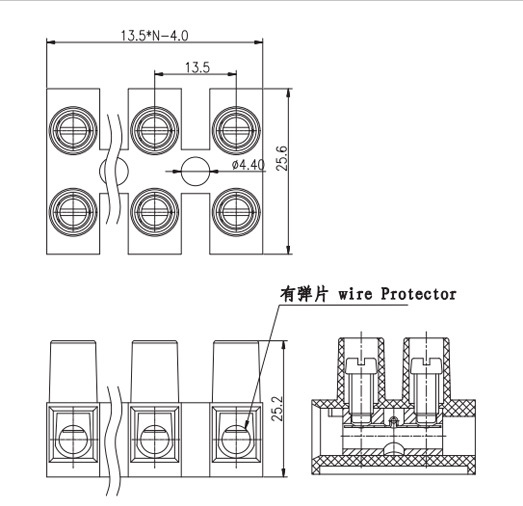

  • Diagrams
  • Parameter
  • Certificate
    • Commodity name: RJ14HWP
    • Commodity ID: E-008

  • IEC/DIN VED Techinical data
    Rated insulation voltage 1000V
    Rated current 57A
    Rated insulation voltageⅢ/3 -
    Rated insulation voltageⅢ/2 750V
    Rated insulation voltageⅢ/2 -
    Rated surge voltageⅢ/3 -
    Rated surge voltageⅢ/2 4kV
    Rated surge voltageⅢ/2 -
    UL Techinical data
    Rated insulation voltage(B) 300V
    Rated current(B) 50A
    Rated insulation voltage (C) 150V
    Rated current (C) 50A
    Rated insulation voltage(D) 300V
    Rated current(D) 10A
    Connection capacity
    Rigid conductor cross section 4-10mm2
    Rigid conductor cross section 4-10mm2
    Rigid conductor cross section 12-8AWG
    Mechanical
    Torque 1.2N.m(10.5Lb-In)
    Ambient temperature -40℃-+105℃
    Stripping length  9-10mm
