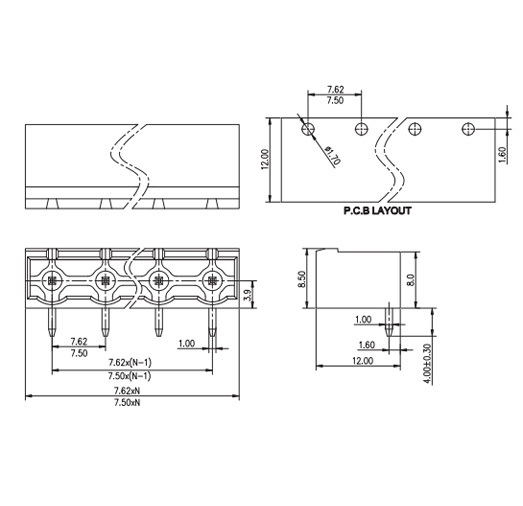

- Commodity name: 2ERJRC-7.5/7.62
- Commodity ID: B-089
IEC/DIN VED Techinical data Rated insulation voltage 400V Rated current 20A Rated insulation voltageⅢ/3 400V Rated insulation voltageⅢ/2 400V Rated insulation voltageⅢ/2 1000V Rated surge voltageⅢ/3 6kV Rated surge voltageⅢ/2 6kV Rated surge voltageⅢ/2 6kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 250V Rated current(D) 10A Connection capacity Rigid conductor cross section - Rigid conductor cross section - Rigid conductor cross section - Mechanical Torque - Ambient temperature -40℃-+105℃ Stripping length -
