Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
2ERJKD-2.5/2.54
型号：
B-092
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

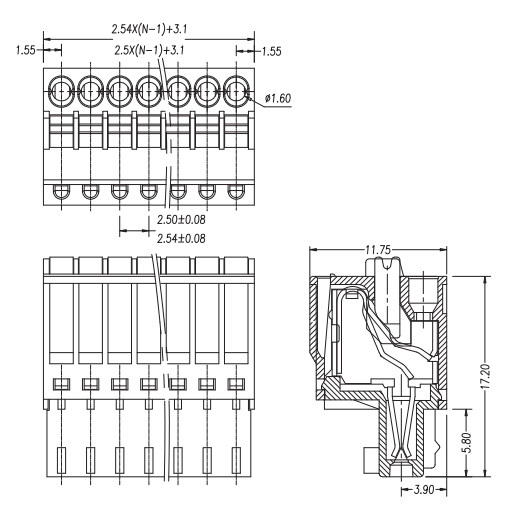

- Diagrams
- Parameter
- Certificate
-
- Commodity name: 2ERJKD-2.5/2.54
- Commodity ID: B-092
-
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 5A Rated insulation voltageⅢ/3 100V Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 320V Rated surge voltageⅢ/3 1.5kV Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 2.5kV UL Techinical data Rated insulation voltage(B) 150V Rated current(B) 4A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 150V Rated current(D) 4A Connection capacity Rigid conductor cross section 0.2-0.5mm2 Rigid conductor cross section 0.2-0.5mm2 Rigid conductor cross section 28-20AWG Mechanical Torque - Ambient temperature -40℃-+105℃ Stripping length 8mm -
