Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ135T-10.16
型号：
C-022
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

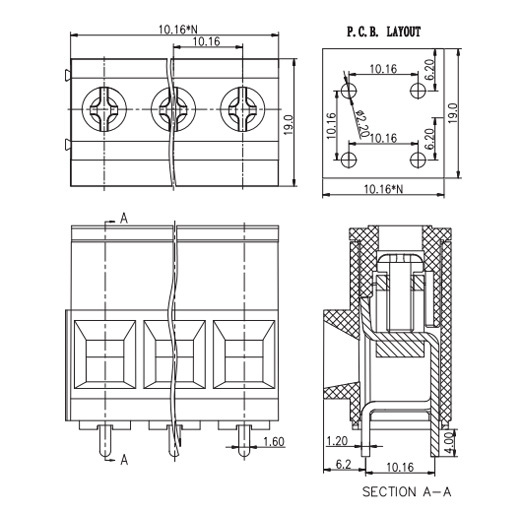

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ135T-10.16
- Commodity ID: C-022
-
IEC/DIN VED Techinical data Rated insulation voltage 750V Rated current 57A Rated insulation voltageⅢ/3 690V Rated insulation voltageⅢ/2 1000V Rated insulation voltageⅢ/2 1000V Rated surge voltageⅢ/3 6kV Rated surge voltageⅢ/2 6kV Rated surge voltageⅢ/2 6kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 52A Rated insulation voltage (C) 300V Rated current (C) 52A Rated insulation voltage(D) 600V Rated current(D) 5A Connection capacity Rigid conductor cross section 2.5-10mm2 Rigid conductor cross section 2.5-10mm2 Rigid conductor cross section 20-6AWG Mechanical Torque 1.2N.m(10.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 10mm
