Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

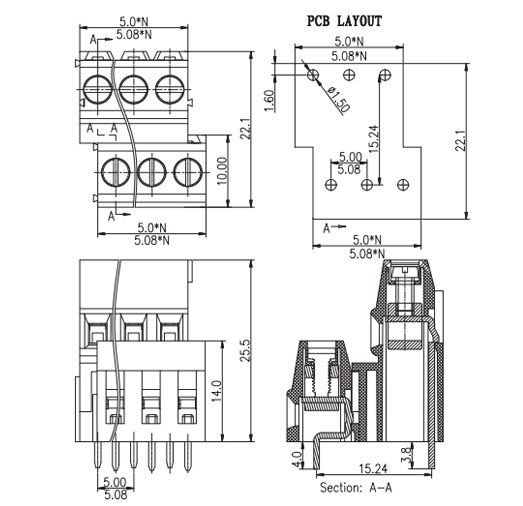

- Commodity name: RJ128A-5.0/5.08
- Commodity ID: C-009
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 18A Rated insulation voltageⅢ/3 250V Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 630V Rated surge voltageⅢ/3 4kV Rated surge voltageⅢ/2 4kV Rated surge voltageⅢ/2 4kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 10A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 28-12AWG Mechanical Torque 0.4N.m(3.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 7mm
