PRODUCTS
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ635-7.62
型号：
C-029
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

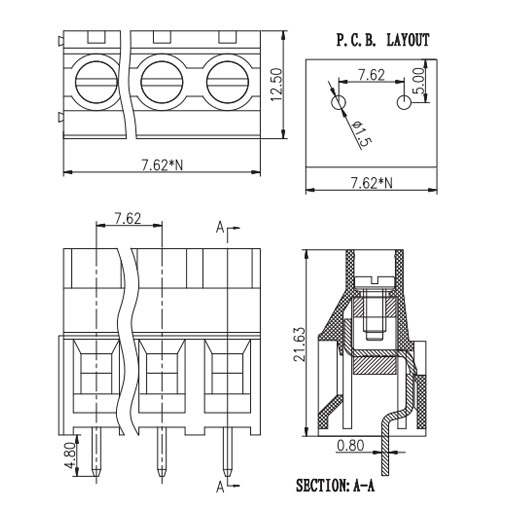

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ635-7.62
- Commodity ID: C-029
-
IEC/DIN VED Techinical data Rated insulation voltage 630V Rated current 26A Rated insulation voltageⅢ/3 450V Rated insulation voltageⅢ/2 630V Rated insulation voltageⅢ/2 1000V Rated surge voltageⅢ/3 6kV Rated surge voltageⅢ/2 6kV Rated surge voltageⅢ/2 6kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 30A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.2-4mm2 Rigid conductor cross section 0.2-4mm2 Rigid conductor cross section 26-10AWG Mechanical Torque 0.5N.m(6Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8mm -
