Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ950-9.5
型号：
C-031
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

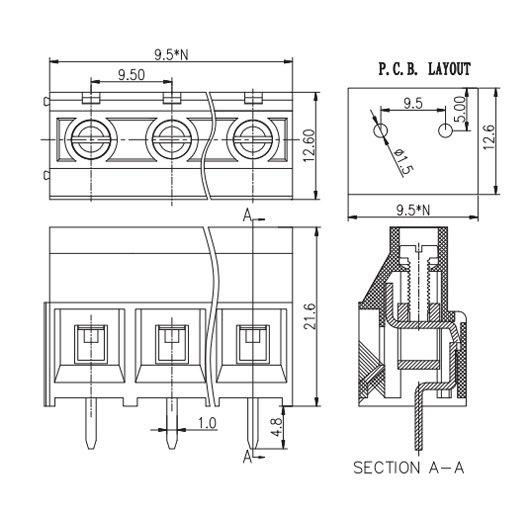

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ950-9.5
- Commodity ID: C-031
-
IEC/DIN VED Techinical data Rated insulation voltage 750V Rated current 26A Rated insulation voltageⅢ/3 690V Rated insulation voltageⅢ/2 1000V Rated insulation voltageⅢ/2 1000V Rated surge voltageⅢ/3 6kV Rated surge voltageⅢ/2 6kV Rated surge voltageⅢ/2 6kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 30A Rated insulation voltage (C) 300V Rated current (C) 30A Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.2-4mm2 Rigid conductor cross section 0.2-4mm2 Rigid conductor cross section 26-10AWG Mechanical Torque 0.5N.m(6Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8mm -
