Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ300-5.0
型号：
C-034
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

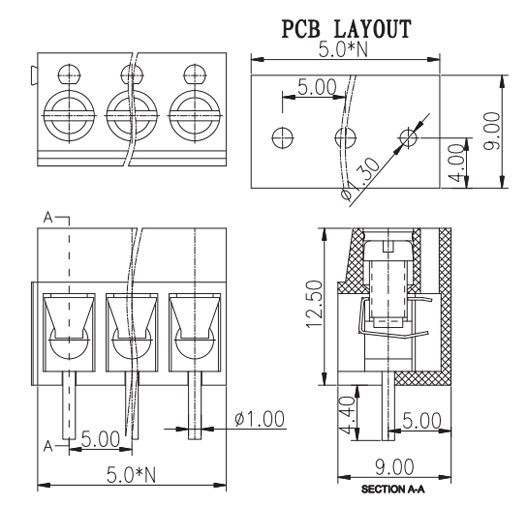

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ300-5.0
- Commodity ID: C-034
-
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 24A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 2kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 250V Rated current(B) 16A Rated insulation voltage (C) 150V Rated current (C) 15A Rated insulation voltage(D) 250V Rated current(D) 16A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 22-14AWG Mechanical Torque 0.25N.m(2.2Lb-In) Ambient temperature -40℃-+105℃ Stripping length 5-6mm -
