RJ350-3.5/3.96
型号：
C-039
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

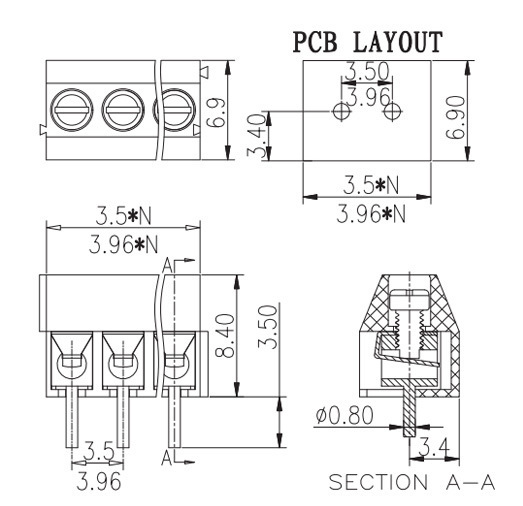

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ350-3.5/3.96
- Commodity ID: C-039
-
IEC/DIN VED Techinical data Rated insulation voltage 130V Rated current 10A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 130V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 1.25kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 7A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 7A Connection capacity Rigid conductor cross section 0.5-1mm2 Rigid conductor cross section 0.5-1mm2 Rigid conductor cross section 22-18AWG Mechanical Torque 0.2N.m(1.7Lb-In) Ambient temperature -40℃-+105℃ Stripping length 5mm
