Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

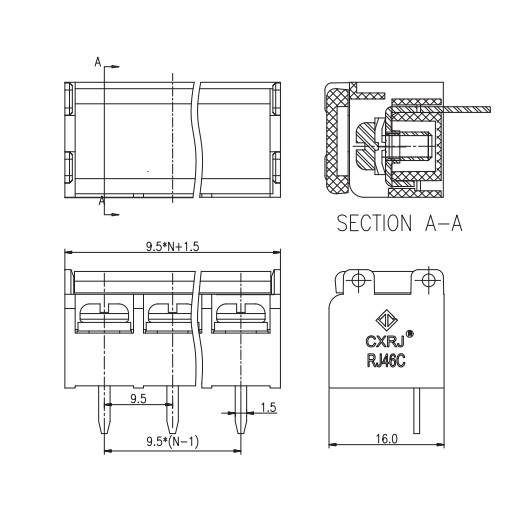

- Commodity name: RJ46C
- Commodity ID: F-040
IEC/DIN VED Techinical data Rated insulation voltage 450V Rated current 32A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 450V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 3kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 20A Rated insulation voltage (C) 300V Rated current(C) 20A Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 22-12AWG Mechanical Torque 1.2N.m(10.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-13mm
