Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ28C
型号：
F-043
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

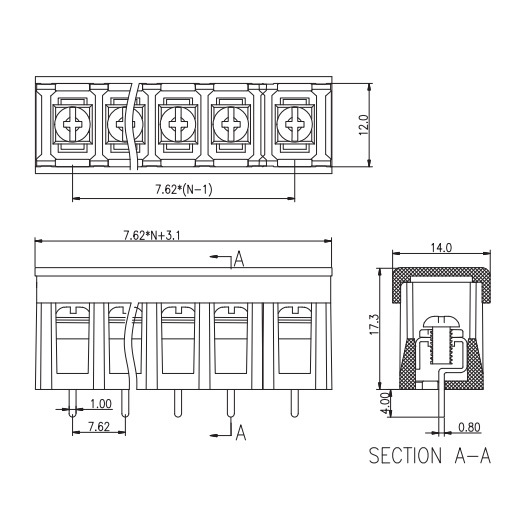

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ28C
- Commodity ID: F-043
-
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 24A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) 300V Rated current (C) 15A Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 22-12AWG Mechanical Torque 1.2N.m(10.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-12mm -
