Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

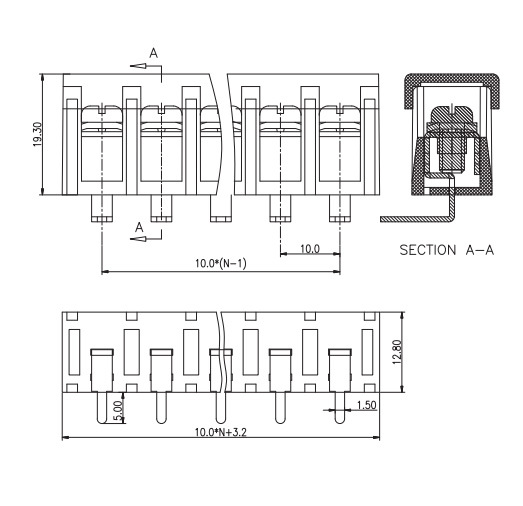

- Commodity name: RJ58R
- Commodity ID: F-074
IEC/DIN VED Techinical data Rated insulation voltage 450V Rated current 32A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 450V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 3kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 25A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-4mm2 Rigid conductor cross section 0.5-4mm2 Rigid conductor cross section 22-10AWG Mechanical Torque 1.2N.m(10Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-13mm
