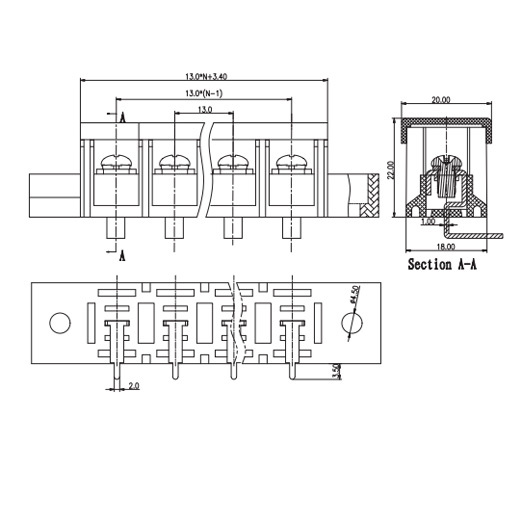

- Commodity name: RJ78RM
- Commodity ID: F-083
IEC/DIN VED Techinical data Rated insulation voltage 750V Rated current 41A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 750V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 4kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 40A Rated insulation voltage (C) 300V Rated current (C) 40A Rated insulation voltage(D) 600V Rated current(D) 10A Connection capacity Rigid conductor cross section 1.5-6mm2 Rigid conductor cross section 1.5-6mm2 Rigid conductor cross section 18-8AWG Mechanical Torque 1.2N.m(10.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 9-14mm
