Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ8500
型号：
F-086
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

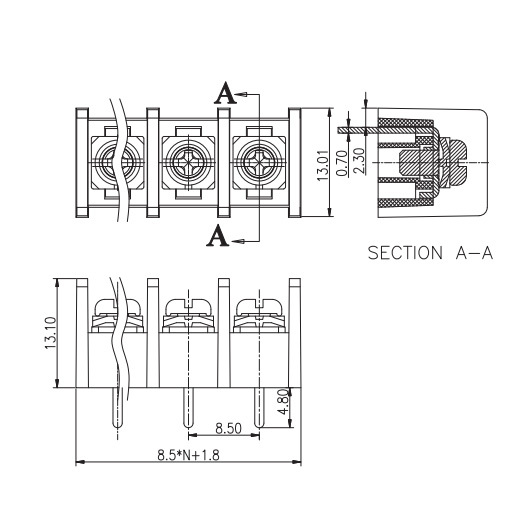

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ8500
- Commodity ID: F-086
-
IEC/DIN VED Techinical data Rated insulation voltage 450V Rated current 32A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) 300V Rated current (C) 15A Rated insulation voltage(D) 600V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-4mm2 Rigid conductor cross section 0.5-4mm2 Rigid conductor cross section 22-14AWG Mechanical Torque 0.5N.m(4.4Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-12mm
