Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

+
  • 2ERJKNHBG(1).jpg

2ERJKNHBG-3.5/3.81

型号:

B-015 old


Summary

Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets


Message

Detail

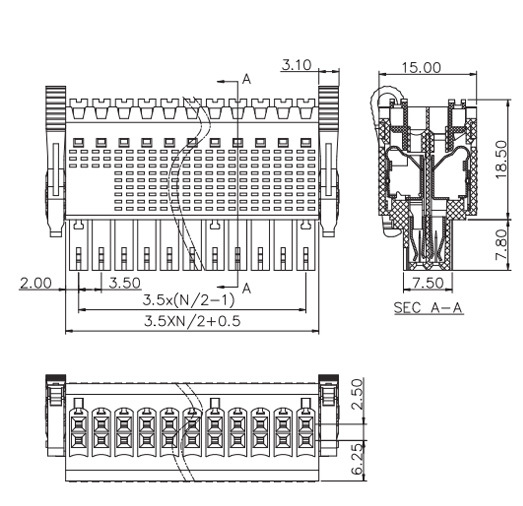

  • Diagrams
  • Parameter
  • Certificate
    • Commodity name: 2ERJKNHBG-3.5/3.81
    • Commodity ID: B-015 old

  • IEC/DIN VED Techinical data
    Rated insulation voltage 250V
    Rated current 7A
    Rated insulation voltageⅢ/3 160V
    Rated insulation voltageⅢ/2 160V
    Rated insulation voltageⅢ/2 320V
    Rated surge voltageⅢ/3 2.5kV
    Rated surge voltageⅢ/2 2.5kV
    Rated surge voltageⅢ/2 2.5kV
    UL Techinical data
    Rated insulation voltage(B) 150V
    Rated current(B) 10A
    Rated insulation voltage (C)
    Rated current (C) -
    Rated insulation voltage(D) 250V
    Rated current(D) 10A
    Connection capacity
    Rigid conductor cross section
    28-16AWG
    Rigid conductor cross section
    1.5mm2
    Rigid conductor cross section -
    Mechanical
    Torque 0.2N.m(1.7Lb-In)
    Ambient temperature -40℃-+105℃
    Stripping length  7mm
