Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

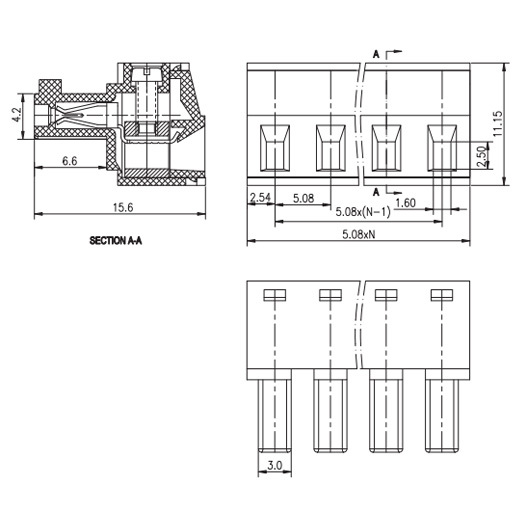

- Commodity name: 2ERJKF-5.0/5.08
- Commodity ID: B-041
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 7A Rated insulation voltageⅢ/3 250V Rated insulation voltageⅢ/2 320V Rated insulation voltageⅢ/2 630V Rated surge voltageⅢ/3 2.5kV Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 2.5kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 8A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 125V Rated current(D) 8A Connection capacity Rigid conductor cross section 0.5-1.5mm2 Rigid conductor cross section 0.5-1.5mm2 Rigid conductor cross section 28-16AWG Mechanical Torque 0.2N.m(1.70Lb-In) Ambient temperature -40℃-+105℃ Stripping length 7mm
