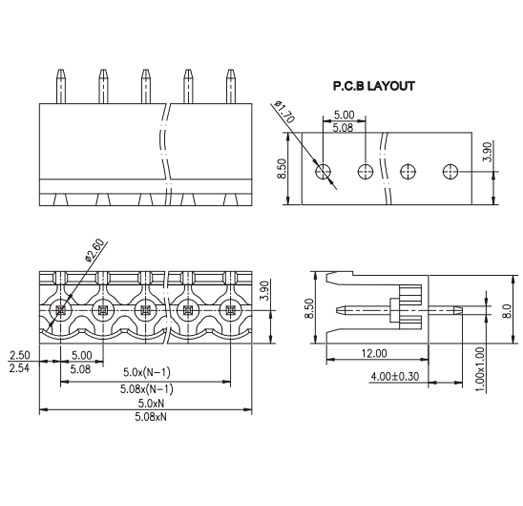

- Commodity name: 2ERJV-5.0/5.08
- Commodity ID: B-055
IEC/DIN VED Techinical data Rated insulation voltage 320V Rated current 20A Rated insulation voltageⅢ/3 250V Rated insulation voltageⅢ/2 320V Rated insulation voltageⅢ/2 630V Rated surge voltageⅢ/3 4kV Rated surge voltageⅢ/2 4kV Rated surge voltageⅢ/2 4kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 250V Rated current(D) 10A Connection capacity Rigid conductor cross section - Rigid conductor cross section - Rigid conductor cross section - Mechanical Torque - Ambient temperature -40℃-+105℃ Stripping length -
