Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
2ERJLC-5.08
型号：
B-076
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

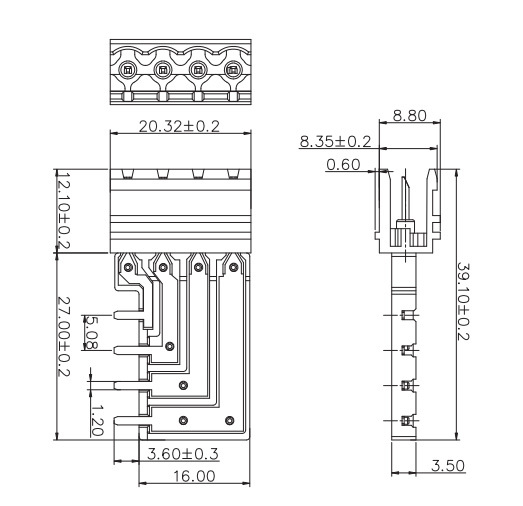

- Diagrams
- Parameter
- Certificate
-
- Commodity name: 2ERJLC-5.08
- Commodity ID: B-076
-
IEC/DIN VED Techinical data Rated insulation voltage 320V Rated current 20A Rated insulation voltageⅢ/3 250V Rated insulation voltageⅢ/2 320V Rated insulation voltageⅢ/2 630V Rated surge voltageⅢ/3 4kV Rated surge voltageⅢ/2 4kV Rated surge voltageⅢ/2 4kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 320V Rated current(D) 20A Connection capacity Rigid conductor cross section - Rigid conductor cross section - Rigid conductor cross section - Mechanical Torque - Ambient temperature -40℃-+105℃ Stripping length -
