Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets

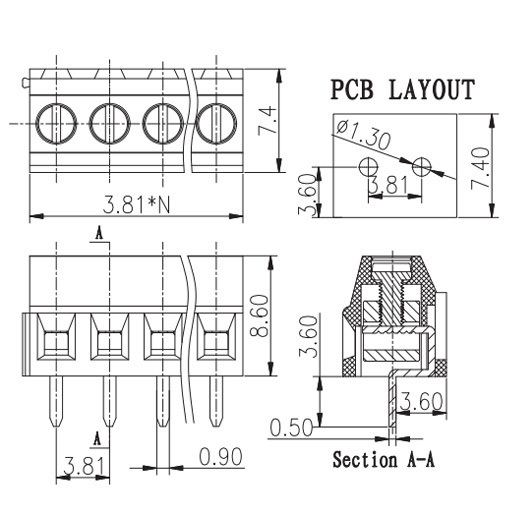

- Commodity name: RJ381-3.81
- Commodity ID: C-024
IEC/DIN VED Techinical data Rated insulation voltage 130V Rated current 10A Rated insulation voltageⅢ/3 130V Rated insulation voltageⅢ/2 130V Rated insulation voltageⅢ/2 320V Rated surge voltageⅢ/3 2.5kV Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 2.5kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 10A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) - Rated current(D) - Connection capacity Rigid conductor cross section 0.2-1mm2 Rigid conductor cross section 0.2-1mm2 Rigid conductor cross section 26-16AWG Mechanical Torque 0.2N.m(1.7Lb-In) Ambient temperature -40℃-+105℃ Stripping length 5mm
