Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ381H-3.81
型号：
C-025
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

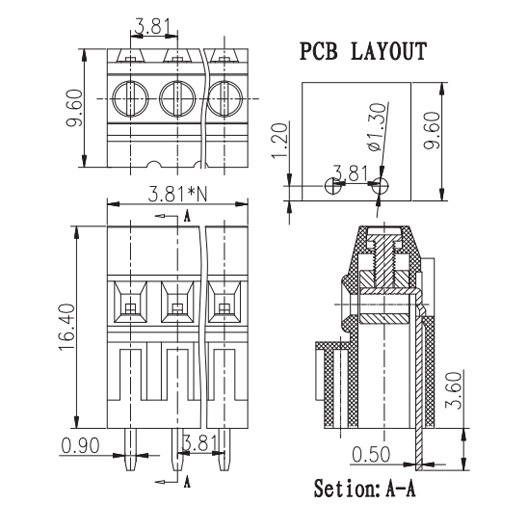

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ381H-3.81
- Commodity ID: C-025
-
IEC/DIN VED Techinical data Rated insulation voltage 130V Rated current 10A Rated insulation voltageⅢ/3 130V Rated insulation voltageⅢ/2 130V Rated insulation voltageⅢ/2 320V Rated surge voltageⅢ/3 2.5kV Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 2.5kV UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 10A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) - Rated current(D) - Connection capacity Rigid conductor cross section 0.2-1mm2 Rigid conductor cross section 0.2-1mm2 Rigid conductor cross section 26-16AWG Mechanical Torque 0.2N.m(1.7Lb-In) Ambient temperature -40℃-+105℃ Stripping length 5mm -
