Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
RJ25CM
型号：
F-005
Category：
Summary
Professional Manufacturer Of All Kinds Of Terminal Blocks Horn Type Sockets
TEL: +86-574-23669998、23669908
E-mail: cxrj@cxrj.com.cn
Keywords：
Detail

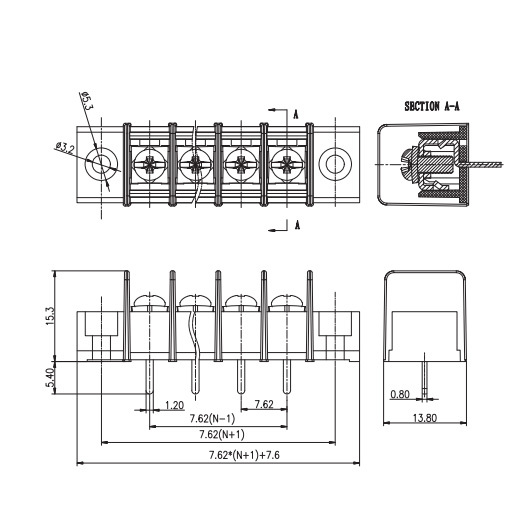

- Diagrams
- Parameter
- Certificate
-
- Commodity name: RJ25CM
- Commodity ID: F-005
-
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 24A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 22-12AWG Mechanical Torque 0.5N.m(4.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-12mm -
