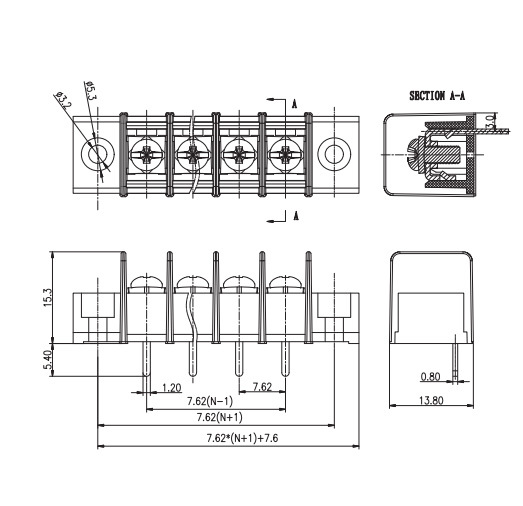

- Commodity name: RJ25SM
- Commodity ID: F-007
IEC/DIN VED Techinical data Rated insulation voltage 250V Rated current 24A Rated insulation voltageⅢ/3 - Rated insulation voltageⅢ/2 250V Rated insulation voltageⅢ/2 - Rated surge voltageⅢ/3 - Rated surge voltageⅢ/2 2.5kV Rated surge voltageⅢ/2 - UL Techinical data Rated insulation voltage(B) 300V Rated current(B) 15A Rated insulation voltage (C) - Rated current (C) - Rated insulation voltage(D) 300V Rated current(D) 10A Connection capacity Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 0.5-2.5mm2 Rigid conductor cross section 22-12AWG Mechanical Torque 0.5N.m(4.5Lb-In) Ambient temperature -40℃-+105℃ Stripping length 8-12mm
